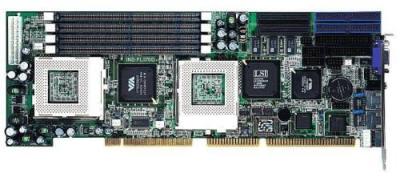

IND-PL370D INDUSTRIAL CPU BOARD

Features

	Full-size DUAL Processor PICMG V2.0 PCI ISA Bus Compatible Single Board Computer
	Intel PIII Socket 370 -500-1000 MHz Processors
	Up to 2 Gb PC133 SDRAM Four Sockets
	AGP Video controller (SiS 6326 AGP Video) on board 4MB display memory
	On-board Ultra DMA/33 IDE port supports four drives
	Via Apollo Pro 133a Chip Set
	Dual Intel 82559 10/100 Ethernet controllers
	Integrated Via AC97 compliant Audio with Line-in,line out $ mic
	Socket for DiskOnChip from M-Systems supports Flash Disk
	Compact Flash Type II socket on rear of Board
	Dual FDD controller supporting 2.88 MB drives
	Health Monitoring: On-board Winbond monitoring IC with onboard Fan monitor
	Two RS-232 Serial Ports with 16550 FIFOs
	Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
	On-board 6-pin Mini-Din PS/2 Mouse Connector
	USB 1.1 and IrDA compliant BIOS Support
	16 Level Watch Dog Timer
	Intel MPS-1.4 (Multiprocessor Specification Version 1.4)
	Plug & Play Phoenix/AWARD BIOS with ACPI
	Board Size (13.25" x 4.8")
	Operating Temp 0-55 C , 10-90%RH, non condensing

The IND-PL370D is a highly integrated industrial single board computer (SBC) containing high performance DUAL Pentium III Socket 370 processors compiling with Intels MultiProcessor Specification 1.4, High Resolution AGP video controller . The IND-PL370D is built around the Via Apollo Pro 133a core logic chipset available, the SIS 6326 AGPset. The performance that comes with this chipset includes SDRAM memory optimization and a bus designed to support both 66MHZ and 133MHZ bus speeds.

The IND-PL370D is equipped with two USB ports supporting up to 127 USB devices. The AGP video controller uses 42 MB of video RAM.

The IND-PL370D is equipped with Dual Intel 82559 10/100 Base-T ethernet controllers.

The IND-PL370D contains an on board socket that supports the Disk-On-Chip from M-Systems and a Compact Flash Type II socket on the rear of the board.

The IND-PL370D provides dual floppy controller accommodating 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB and LS-120 devices. The high performance parallel port supports mult-mode(SPP/EPP/ECP) operations. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.
