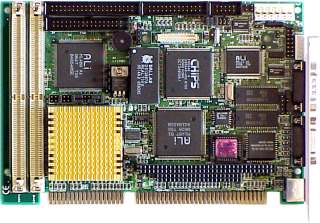

IND-486DV INDUSTRIAL CPU BOARD

    IND-486DV
Features
ISA Bus Compatible Single Board Computer
486DX2-66 or 486DX4-100 CPU
Up to 64 MB DRAM
128 KB Cache (expandable to 512KB)
On-board PC-104 Connector
PCI Video controller (C&T 65545) with 1MB supports CRTs and Flat Panels
On-board PCI IDE port supports two drives
Dual FDD controller supporting 2.88 MB drives
Two RS-232/422/485 Ports with 16550 FIFOs
Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
16 Level Watch Dog Timer
On-board PS/2 Mouse connector
Plug & Play AWARD FLASH BIOS
Power requirements : 5V@1.8A(max)
Small Size (7.28" x 4.8")
Operating Temp 0-60 C , 10-95%RH, non-condensing


See LCD Display Support List

The IND-486DV is a full featured single board computer equipped with an on-board VGA controller supporting CRTs and LCD panels with high resolution (1024x768) operation.

Wide use of CMOS components and surface mount technology on a six layer printed circuit board results in a SBC that is both rugged and cost effective. With its high performance, low power consumption, small size, wide temperature range and AT Bus compatibility, it is an ideal solution for the OEM/system integration marketplace.

The IND-486DV contains an on-board 3.3V regulator with auto-sense circuitry to accommodate both 3V and 5V CPUs. By using 3V CPUs, overall heat generation is greatly reduced - an important consideration in industrial applications.

Between 1 and 64MB of DRAM can be accommodated with two 72-pin SIMM Sockets.

The IND-486DV provides an enhanced PCI-IDE interface, supporting two IDE drives. The dual floppy controller accommodated 360KB, 720KB, 1.2MB, 1.44MB and 2.88 MB devices. The high performance parallel port supports multi-mode (SPP/EPP/ECP) operation. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates. The COM2 port can be configured for RS-232, RS-422 or RS-485 operation.

The watch dog timer provides the fail safe operation required for critical control applications. If a hardware or software malfunction occurs, the IND-486DV either generates a Reset or NON Maskable Interrupt (jumper selectable). This insures that the program will restart in an orderly and predictable manner.
