IND-1400LP

IND-1400LP Industrial Chassis

IND-1400LP

Features

EIA 19" Rack-mount enclosure
Rugged and Heavy-duty steel chassis
14-slot ISA/PCI Backplane
Supports 386, 486, 586 and Pentium plug-in CPU boards
Field replaceable 250 watt power supply
Removable drive cage for mounting one removable drive and tow hard drives
Shock mounted Drive Cage
Positive air pressure generated by dual push-pull cooling fans
Lockable Drive Cage
Provisions for two DB-25 and DB-9 connectors
Allows access to all industry standard PC compatible programs
Drive Bays: 2-5.25"(ext.), 1-3.5" (ext), 3-3.5"(int.)
Dimensions (W x L x H) 19" x 17.7" x 7.0"

Technical Drawing

The IND-1400LP is a full function, PC compatible computer that is specifically designed for the industrial environment. It can endure the extremes of temperature, humidity, airborne contaminants, shock and vibration found on the factory f loor.

The IND-1400LP and it's plug-in CPU boards are IBM AT compatible and support all popular operating systems, development tools and industrial/scientific application software packages. This combination provides a foundation for creating solutions to a multitude of factory floor and laboratory problems. The solutions are applicable to both discrete and continuous manufacturing processes.

Rugged and versatile, the IND-1400LP can be located close to the processes it controls and/or monitors. It can be configured as a stand alone device or linked via a local area network as part of a distributed control system.

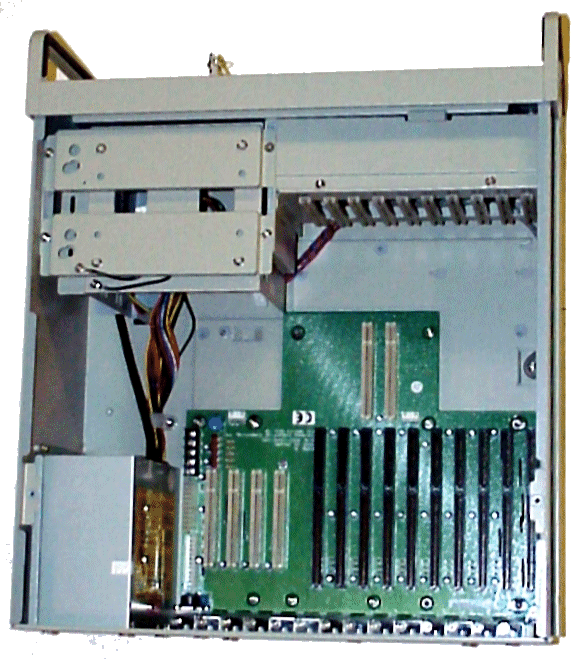

IND-1400LP internal view
