IND-PM855F Pentium® M PICMG INDUSTRIAL CPU BOARD

Features

	Full-size PICMG Bus Compatible Single Board
	Supports Socket-478 Intel Pentium-M Processors
	Two 184-pin DIMM memory, suport DDR266 SDRAM up to 2GB
	Integrated graphics, support CRT, digital video out & LVDS LCD
	Intel® 855GME chipset include Graphic Memory Controller Hub, I/O controller Hub 4, and Firmware Hub
	LAN1, Intel 82562EM 10/100 Mbps Ethernet LAN2, Intel 82541GI (1Gb) Support Wake-on-LAN with ATX power
	x1CompactFlash socket
	x4 USB2.0 ports, IrDA, Floppy, Parallel, K/B & Mouse ports
	One RS-232, one RS-232/422/485 selectable serial ports
	Two enhanced IDE connectors, supports UDMA 33/66/100 devices
	One EPCI expansion bus
	16-level Programmable watchdog timer built-in ICH4
	Phoenix-AWARD FLASH BIOS
	Power requirements : AT/ATX power,+5V@2.8A, +12V@1.93A
	Size (13.33" x 4.8") 338mm x 122mm
	Operating Temp 0-60° C , 10-90%RH, non-condensing

The IND-PM855F is a highly integrated industrial single board computer (SBC) for Intel Pentium M and Intel Celron M processors and associated microarchitechitecture. It is integrated with Intel 855GME memory controller hub, 400MHz system bus with DDR333 memory, graphic visual controller, I/O controller hub 4, and dual LANs up to 1Gigabits ethernet. The IND-PM855F delivers the performance and high scalability required for today's cutting-edge embeded computing applications.

The IND-PM855F provides on-board Dual 10/100 Mbps LAN, integrated with Intel 82562ET 10/100 Mbps and Intel 82540EM 10/100/1Gigabits Ethernet controller. With embedded graphic controller, it support full VGAcompability and LVDS LCD. This board equipped with four USB ports supporting up to 127 USB devices. The serial ports provide RS-232/RS-422/RS-485 jumper selectable.

The IND-PM855F on-board CompactFlash socket that uses supports Type I/II cards up to 512MByte and 8G Byte Flash Disk device on BIOS socket provided. The Phoenix-Award BIOS with 2MB Flash in Firmware Hub support PnP, APM, Multi boot, DMI, and ACPI, meet various requirements of the most advanced industrial environment.

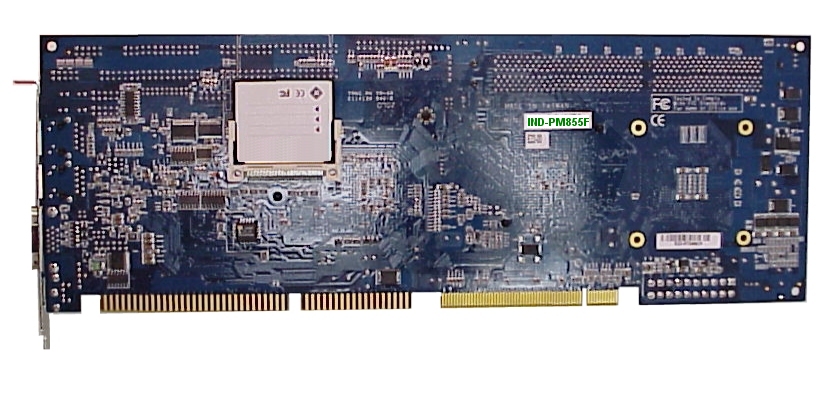

back of board
