Features
 |
Full-size
PICMG Standard Single Board Computer |
|
Intel
Pentium 4 Socket 478 Processors with hyper-threading technology up to
3.2 GHz.
|
|
Front Side Bus
400/533/800 Mhz NetBurst
|
|
Two
184-pin DDR DIMM slot supports memory capacities up to 2GB with
DDR-266/333/400
|
|
Intel
82865GV VGA controller with 1MB/8MB/16MB shared memory, supports CRT display
up to 1600 x 1200 at 32-bit colors at 60Hz.
|
|
Supports
LVDS interface
|
|
Audio AC97 compliant
with Line-In/out/Mic & CD-in I/O port
|
| |
Serial
ATA integrates Intel ICH5 controller, with 2 ports support transfer
rate up to 150MB/sec.
|
|
|
Four IDE ATA 33/66/100 with transfer
rate 33/66/100MB/sec. |
|
Two Intel 100/1000 Base
LAN ports
|
|
|
FDD
interface supports Two floppy disk devices. |
|
|
One
RS-232/422/485 Serial Port and x3 RS-232 serial ports with 16550
URTA-compatible FIFOs |
|
|
Multi-Mode
(SPP/EPP/ECP), High Performance Parallel Port |
| |
Seven
USB 2.0 ports
|
| |
PC/104
bus connector for 16-bit ISA Bus expansion
|
|
|
On-board PS/2 6-pin Mini-Din
Connector for Mouse & keyboard |
| |
Hardware
Monitoring function detects
temperature and voltage status on system & CPU. |
| |
Award
4MB FLASH BIOS supports with PC98, ACPI, DMI, PnP, Green functions and
Y2K compliant. |
|
Watchdog Timer software
program intervals 1-256 sec.
|
| |
Power
Requirements: +5V@5A, +12V@1.5A, -12V@30mA
|
| |
Board
Size 13.3" x 4.8" (339 x 122 mm) |
 |
|

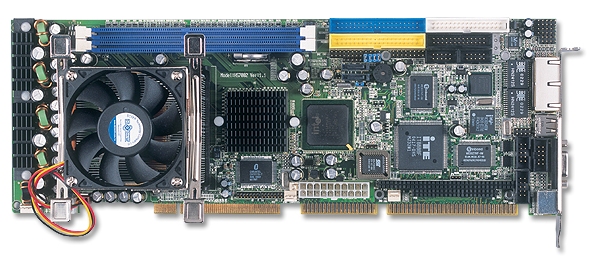

The IND-P4SATA is a highly integrated industrial single
board
computer (SBC) containing a high performance 32-bit Pentium4
Socket 478 Processors. High Resolution AGP VGA,
serial ATA, and
on-board 100/1000 base-t LAN controller with LED indicators.. The IND-P4SATA
is built around the most advanced core logic chipset Intel 82865GV and
Intel 80801 Chipset. The superior system performance comes from the
advanced chip
set that supports DDR Memory with speeds upto DDR400 and a fast Front Side Bus that supports
both 400/533/800 MHz Netburst architecutre.
The IND-P4SATA is equipped with seven USB ports, LVDS and
TV-out display controller, enhanced Serial ATA, and PCI ATA-33/66/100
IDE controller, four COM ports, oe IrDA connector. On-board AC 97 codec
supports Line-in,
Line-Out, Microphone-In, and CD-ROM audio-in interfaces.
The IND-P4SATA contains an on-board
socket that supports
pc/104 connector for easy system expansion.
The IND-P4SATA Build with sensors for detecting Vcore
+3.3V, ±5V, ±12V for CPU and
system monitor. Two reserved 80-pin connectors for extending PCI
devices, such as Ultra SCSI, LAN, IEEE1394..etc. to the host system. at
high baud rates.
