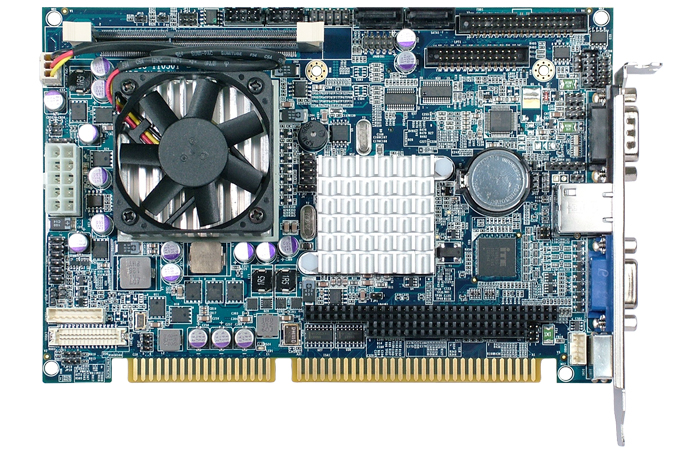

IND-G1105 INDUSTRIAL CPU BOARD

IND-G1105
Features

light Half-size ISA Bus Compatible Single Board
light AMD G-series processor, CPU Frequency 615MHz(T16R), Chipset AMD A55E
1 x 204-Pin DDR3 SO-DIMM 800MHz up to 4GB
Build-in T52R / T16R processor, share system memory;
Supports VGA, LVDS (18bit, 24bit)
2 x SATAII connector
Ethernet-Single Ports;Realtek Giga LAN
1 x CFast, 1 x PC104
1 x FDD connector with 34-pin box-header on board
Health Monitoring: Voltage, CPU temperature, cooling fan
2 x COM port; COM 1 for RS-232, COM 2 for RS-232/422/485
1-Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
Two USB 2.0 , IrDA, mini DIN Keyboard & mouse
1~255 secs Watchdog timer selectable
Plug & Play AMI BIOS
Support AT/ATX power supply, + 5V & +12V, green function
Small Size 185 mm × 122 mm (7.28" × 4.8")
Operating Temp 0-60 C , 20-90%RH, non-condensing
The IND-G1105 is a highly integrated industrial single board computer (SBC) containing a high performance AMD G-series processorBuild-in T52R / T16R processor, share system memory Supports VGA, LVDS (18bit, 24bit) video controller and a Realtek Giga LAN controller all in one small size 7.28" by 4.8". The IND-G1105 is built around the most advanced core logic chipset available, the Chipset AMD A55E. The performance that comes with this chipset includes  DDR3 RAM memory optimization and bus design.

The IND-G1105 is equipped with two USB 2.0 ports for fast and easy plug-and-play data transfer.  Build-in T52R / T16R processor, share system memory Supports VGA, LVDS (18bit, 24bit) video controller

The IND-G1105 contains an on-board socket that supports the Compact Flash slot for the most advanced flash technology.

The IND-G1105 provides dual floppy controller accommodating 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB devices. The high performance parallel port supports mult-mode (SPP/EPP/ECP) operations. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.

IND-G1105 Back
