IND-FL3.5-XXXX CompactFlash Disk

Features

True IDE Hard Drive Emulator

PIO4 Data transfer rate 16.6Mbytes per second

Standard IDE 40 pin connector, requires power 3.5 floppy power connector

ECC function to detect and correct data errors automatically

Extremelly low power consumption

Supports Master and Slaver setting

Power input voltage 3.3V or 5V ±10%

Capacity from 16MB to 8 GB

Supported OS: Windows CE, QNX, Linux, Windows 3.1/95/98,
Windows NT, DOS and more

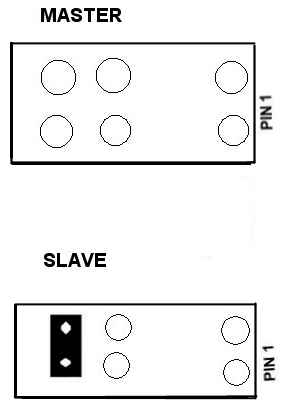

Jumper Setting

The IND-FL3.5 compact Flash disk is a solid design, used to emulate a hard drive. It provide an excellent solution for both rugged environments as well as mobile applications. Its connector size and pin assignment is IDE compatible, and also jumper for any master or slave configuration.

This unique design allows Desktop PC, industrial PC, POS, and set-top box can be easily replacing the original hard disk with the IND-FL3.5 Flash Disk for increasing operation reliability.

The IND-FL3.5 compact Flash disk supports most popular Windows platform, and non-Windows platform, such as Linux, QNX, and more.

IND-FL3.5-XXXX part number quick reference:

Part Number	Capacity
IND-FL3.5-0016	16MB
IND-FL3.5-0064	64MB
IND-FL3.5-0128	128MB
IND-FL3.5-0256	256MB
IND-FL3.5-0512	512MB
IND-FL3.5-1024	1024MB
IND-FL3.5-1280	1280MB
IND-FL3.5-2560	2560MB
IND-FL3.5-3136	3136MB
IND-FL3.5-8000	8000MB
