Features
Hard drive Replacement KIT
|
Completely
replaces your hard drive with no special drivers required.
|
Solid
state system (No moving parts to wear down).
|
Includes
everything needed to make the installation, IND-CFPCH
adapter, 40-pin IDE
connectors, and a power cable.
|
COMPACT FLASH
|
Extremely
mobile, Just snap the compact flash card in and out of your
system as needed.
|
Requires
less space than a conventional hard drive.
|
Typically
takes up to 10 times less power than a hard drive.
|
No
moving parts makes the compact flash more robust than a hard drive and
totally quiet.
|
IND-CFPCH
|
No slot required for installation.
|
IDE Compact Flash Hard Drive Emulator. Works with all IDE
interfaces.
|
On-board IDE 40-pin connector and IDE 44-pin connector |
Jumper selectable for master or slave hard drive. |
4-pin power connector (only require for 40-PIN IDE) |
On-board LED
indicating access status |
Board size:78 x 62 mm ( 3" x 2.5") |
|
The
IND-CFPCH is an unique design, used to emulate a hard drive
using Compact Flash Cards. It provides both standard 40-pin and 44-pin
IDE connectors for any master or slave configuration.
This unique design
allows hard
drives emulation without the need of special drivers or software.
Indocomp provides
everything required to make the replacement of your old hard drive with
a more robust and reliable compact flash. The kit includes the
IND-CFPCH adapter, IDE connector cable,
and a power cable.
See
the Installation Video Link Below
IND-CFPCH
video-installation

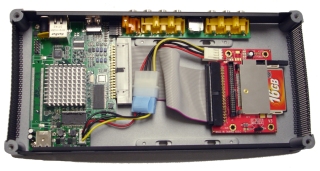

Compact Flash Shown Installed in
system
Compact
Flash Size |
Cost
|
32 GB CF Card (CF ONLY)
|
$185 USD
|
16 GB CF Card (CF ONLY)
|
$110 USD |
IND-CFPCH (Requires CF
Card)
|
$69 USD
|
IND-CFPCH with 2GB CF Card
|
$79 USD
|
IND-CFPCH with 4GB CF Card
|
$89 USD
|
