IND-CFADAP CompactFlash Adapter Board

Features


IDE Compact Flash Hard Drive Emulator.
On-board IDE 40-pin connector and IDE 44-pin connector
Power regular 5 Volt to 3.3Volt.
Jumper selectable for master or slave hard drive.
4-pin power connector (only require for 40-PIN IDE)
On-board LED indicating access status

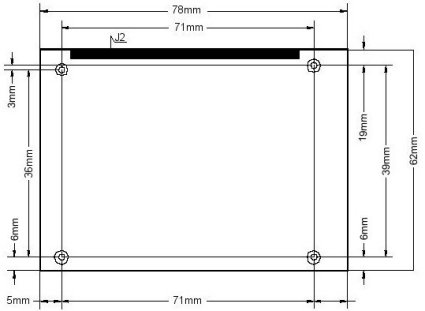

Board size:78 x 62 mm ( 3" x 2.5")

IND-CFADAP board placement

The IND-CFADAP is an unique design, used to emulate a hard drive using Compact Flash Cards. It provides both standard 40-pin and 44-pin IDE connectors for any master or slave configuration.

This unique design allows hard drives emulation without the need of special drivers or software.

It's quick setting avoid complicate engineer jobs. Below is information for its jumper settings, connector layouts, and pin assignments.

IND-CFADAP Jumpers and Connectors


Location	Setting		Remarks
JP2		MASTER (OPEN)	DEFAULT
JP2		SLAVE (CLOSE)
IDE1	44-PIN IDE connector
J2/J3	40-PIN IDE
CN1	POWER CONNECTOR		1: Not used 2: Ground 3: Ground 4: +5Volt.
SN1	Compact Flash slot
J1		1: LED + 2: LED -

Note:

Do NOT install both 44-pin and 40-pin IDE connectors simultaneously.

Connect power supply to CN1 when using the 40-pin IDE cable. Do NOT connect if using 44-pin IDE.

J1 is for connecting external LED.
