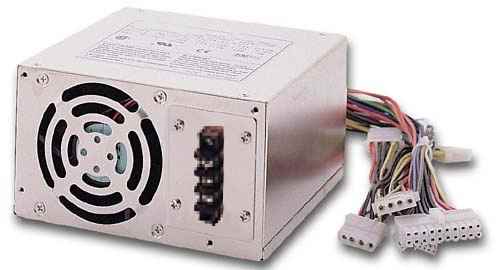

IND-PS48DC-ATX 48DC-ATX Power Supply

Features

High efficiency DC input ATX power supply

Standard ATX power supply form factor

Input range from -40VDC to -57VDC
normal input 10A at -48VDC

Power output 300 Watts

5-Level output, +5V, +12V, -5V, -12V, +3.3V,

Protection for input(primary), outputs(secondary), Over Power protection, Over vlotage Protection, Short circuit protections.

Hold-up time: Output 5V must be maintain 16 msec in regulation limit at normal input voltage.

Provide a Power Good signal for system logic reset.

Operation temperature 0 to 50 degrees centigrade

Humidity: 95% RH

Dimention 150 mm x 140 mm x 86 mm
5.91" x 5.51" x 3.39"

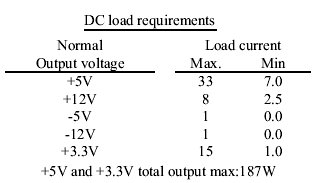

IND-PS48DC output

The IND-PS48DC-ATX is ideally suited for system integrators and end users who require a cost effective power supply device. It complied with ATX and ATX standard, 300 Watts output, is a high efficiency and reliability unit.

The IND-PS48DC-ATX's unique design of low noise and ripple, is perfect solution for now-a-days' heavy duty work envirnment. Protections provided by IND-PS48DC-ATX includes input protection against wrong polarity, system auto recovery provide by short circuit protection function, and the over powr protection and over voltage protection functions will shutdown all outputs and restart the power supply after the problem has been removed.

Each of the IND-PS48DC-ATX power supply is 100% burn-in tested under high ambient temperature, ensure high reliablity, in a harsh environment. Its high efficiency electronic designs make the IND-PS48DC-ATX the best choice for cost effective power supply for most advanced computer systems.

Indocomp Systems Inc.
3383 SOUTH LAPPER ROAD
METAMORA, MI 48455
Phone: 1-810-678-3990
Fax : 1-810-678-3992

email:sales@indocomp.com
