Half-size PCI Bus Compatible Single Board
Supports Socket-478 Intel Pentium-M Processors
Up to1GB DDR SO-DIMM DRAM cache built-in CPU
Integrated 32-bit 3D/2D Gfx with frequency up to 250MHz
pport CRT, digital video out & LVDS LCD
Intel® 855GME chipset include Graphic Memory Controller Hub, I/O controller Hub 4, and Firmware Hub
LAN1, Intel 82562ET 10/100 Mbps Ethernet
LAN2, Intel 82551QM or Intel 82541GI (1Gb)
Support Wake-on-LAN with ATX power
x1CompactFlash socket
x4 USB2.0 ports, IrDA, Floppy,  Parallel, K/B & Mouse ports
One RS-232, one RS-232/422/485 selectable serial ports
Enhanced IDE supports x1 ATAPI, Ultra DMA 100MB/Sec. devices
PCI bus, x1 EPCI bus
16-level Programmable  watchdog timer built-in ICH4
Power requirements : AT/ATX power,+5V@3.42A, +12V@1.48A
Small Size (7.3" x 4.8")  185mm x 122mm
Operating Temp 0-60° C , 10-90%RH, non-condensing

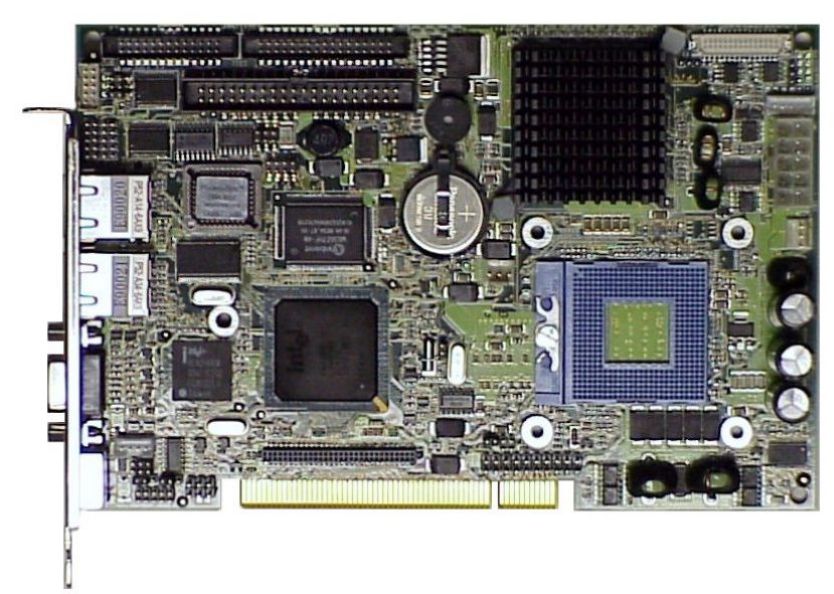

The IND-PM855 is a highly integrated industrial single board computer (SBC) for Intel Pentium M and Intel Celron M processors and associated microarchitechitecture.  It is integrated with Intel 855GME memory controller hub, 400MHz system bus with DDR333 memory, graphic visual controller, I/O controller hub 4, and dual LANs up to 1Gigabits ethernet. The IND-PM855 delivers the performance and high scalability required for today's cutting-edge embeded computing applications.

The IND-PM855 provides on-board Dual 10/100 Mbps LAN, integrated with Intel 82562ET 10/100 Mbps and Intel 82540EM 10/100/1Gigabits Ethernet controller. With embedded graphic controller, it support full VGAcompability and LVDS LCD.  This board equipped with four USB 2.0 ports supporting up to 127 USB devices.  The serial ports provide RS-232/RS-422/RS-485 jumper selectable.

The IND-PM855 on-board CompactFlash socket that uses  supports Type I/II cards up to 512MByte and 8G Byte Flash Disk device on BIOS socket provided. The Phoenix-Award BIOS with 2MB Flash in Firmware Hub support PnP, APM, Multi boot, DMI, and ACPI, meet various requirements of the most advanced industrial environment.

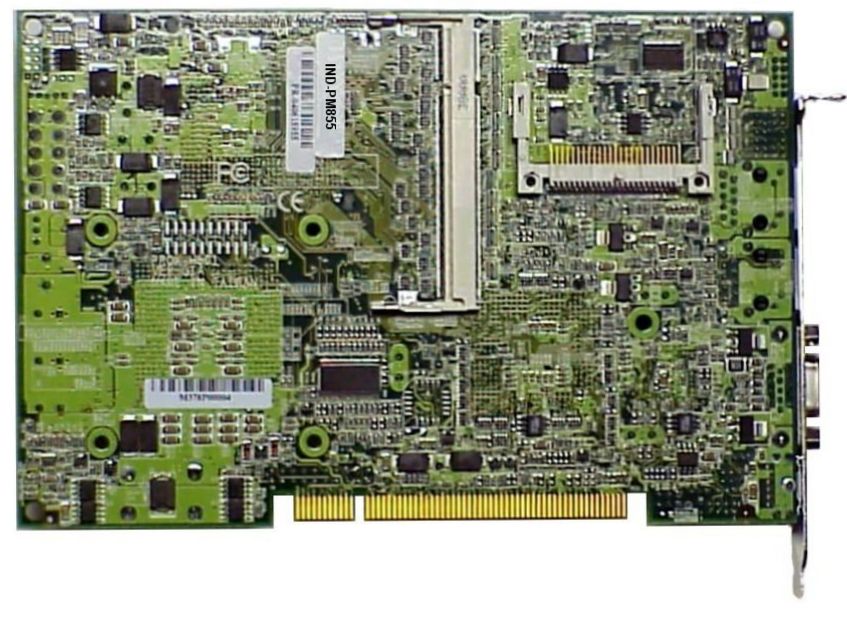

back of board
