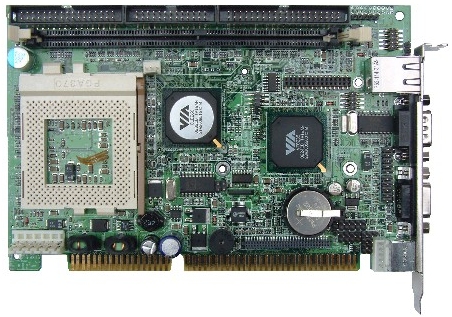

IND-DV370 INDUSTRIAL CPU BOARD

Features

	Half-size ISA Bus Compatible Single Board
	Socket 370 Intel PIII 566-1.26GHz /Intel Celeron®1.1GHz/Tuallatin/VIA C3 700-GHz Processors
	Up to 1GB DDR DIMM , one 184-pin socket
	Embedded VGA controller, supports CRT & TTL
	On-board PCI IDE UDMA-33/66/100/144
	Ethernet- VIA 6103, support 100Base-TX, on-board RJ-45 connector, wake-on-LAN using ATX power
	PC/104, PPCI Expansion bus, Compact Flash Slot
	Dual FDD controller supporting 2.88 MB drives
	Health Monitoring: Voltage, CPU temperature, cooling fan
	Two URTA 16550 FIFOs, COM 2 for RS232/422/485
	Multi-Mode (SPP/EPP/ECP), High Performance Parallel Port
	Four USB 2.0 , IrDA, mini DIN Keyboard & mouse
	16 Level Watch Dog Timer
	Plug & Play AWARD FLASH BIOS
	Support AT/ATX power supply, + 5V & +12V, green function
	Small Size 185mm x 122 mm (7.28" x 4.8")
	Operating Temp 0-55 C , 10-90%RH, non-condensing

The IND-DV370 is a highly integrated industrial single board computer (SBC) containing a high performance Intel Socket 370 processor, AGP (Advanced Graphic Port) video controller and a 100 base-t LAN controller all in one small size 7.28" by 4.8". The IND-DV370 is built around the most advanced core logic chipset available, the VIA CLE266. The performance that comes with this chipset includes DDR RAM memory optimization and bus design.

The IND-DV370 is equipped with four USB 2.0 ports for fast and easy plug-and-play data transfer. The AGP's video controller with 2 MB of video RAM provides an interface for both CRTs and flat panels (color TFT, STN, EL and mono).

The IND-DV370 contains an on-board socket that supports the Compact Flash slot for the most advanced flash technology.

The IND-DV370 provides dual floppy controller accommodating 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB devices. The high performance parallel port supports mult-mode (SPP/EPP/ECP) operations. Both serial ports contain 16550 compatible FIFOs to eliminate data loss at high baud rates.
